OverviewMinghao MH500W 3D Automated Optical Inspection (AOI) System
MH500W shifts the family proposition toward a 400 × 400 mm board field and a 25 MP camera, so wider-board coverage is the primary selection discussion.
Manufacturer-published model data
Minghao MH500W Technical Specifications
| Board handling | 400 × 400 mm |
|---|---|
| Board thickness | 0.5 mm to 6 mm |
| Imaging | 25 MP colour industrial camera |
| Documented configuration | 400 × 400 mm field with 115 μm listed in the source table |
Important: model-level figures and features are conditional manufacturer information, not guarantees for a particular used Minghao MH500W unit.
Key Features
Configuration Must Be Verified
The actual Minghao MH500W quote should identify the installed heads, feeders, nozzles, software, voltage, accessories and visible condition.
Model focusInspection roleWider-board component and marking inspection Workflow capabilityThe source material lists neural-network/image comparison functions, code recognition, mixed-board support and SPC output across this product family where stated. Line integrationConfirm the applicable SMEMA interface, conveyor configuration and width-adjustment method for the machine under review. Evidence boundaryPublished model information is planning input, not a substitute for application validation, calibration records or a live inspection result.
Why MH500W Belongs in an AOI Shortlist
MH500W shifts the family proposition toward a 400 × 400 mm board field and a 25 MP camera, so wider-board coverage is the primary selection discussion.
Brochure visual guide
From 3D Capture to Defect Decision
Shared Minghao-series reference diagrams. Click any image to inspect the source artwork at a larger size.
01 · 3D measurement
Multi-view coordinates turn surface height into inspection data
The brochure illustrates a projector working with two camera views. Its stated goal is to suppress depth-map outliers through multi-view phase consistency before the system judges a feature.
Translation note: the visual explains the measurement concept; it does not guarantee a result for every board, material or programmed defect class.
02 · Reflection handling
Separate direct and indirect reflections before evaluating height
The source diagram describes multiple-reflection compensation and high-frequency stripe suppression. In practical terms, the inspection program needs usable 3D data around reflective solder joints and component geometry.
Confirm the installed lighting, algorithm option, program criteria and calibration process for the actual application.
03 · AI-assisted programming
Use trained component and solder-joint examples to shorten setup work
The brochure describes deep learning, data optimization and one-click recognition of trained components and solder joints. This section is presented as a programming and review concept, not as a claim that every defect can be recognised without application-specific training.
The buyer should verify the available software version, library, training workflow and false-call review process.
04 · Defect examples
Translate the image into a reviewable defect library
The source examples depict wrong component, reversed component, lifted component, silkscreen issue, standing component, missing component, offset, lifted lead, solder bridging, virtual soldering and solder bead conditions.
Use these examples to start a defect-library discussion; the final programmed coverage depends on the component package, solder finish, board design, image quality and acceptance criteria.
Buyer decision guide
When Minghao MH500W Makes Sense — and When It May Not
Minghao MH500W selection should begin with production requirements and evidence, not with a model name alone.
Typical Applications
Typical Applications for Minghao MH500W
Minghao MH500W should be evaluated against the buyer’s board dimensions, component mix, feeder plan, changeover profile and required line integration. The final application fit depends on the evidence for the specific unit.
Before quotation
Three Minghao MH500W Buyer Questions
These questions keep the quotation scope connected to the buyer’s real SMT process.
1
Does the required board range fit the documented 400 × 400 mm envelope for MH500W?
Minghao MH500W buyers should confirm this with actual-machine evidence before quotation.
2
Which solder, component, marking or surface defect classes must the MH500W program cover?
Minghao MH500W buyers should confirm this with actual-machine evidence before quotation.
3
Which software, line interface, calibration and running evidence is required before an equipment decision?
Minghao MH500W buyers should confirm this with actual-machine evidence before quotation.
Source image

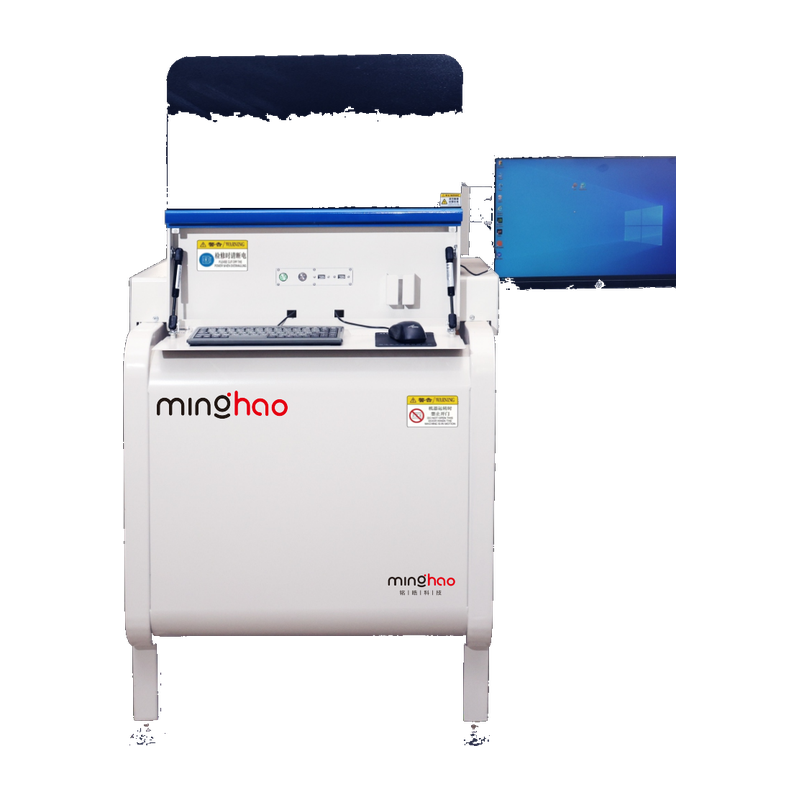

MH500W Machine Reference
