2023 Refurbished YAMAHA YSM20R SMT Pick and Place Machine

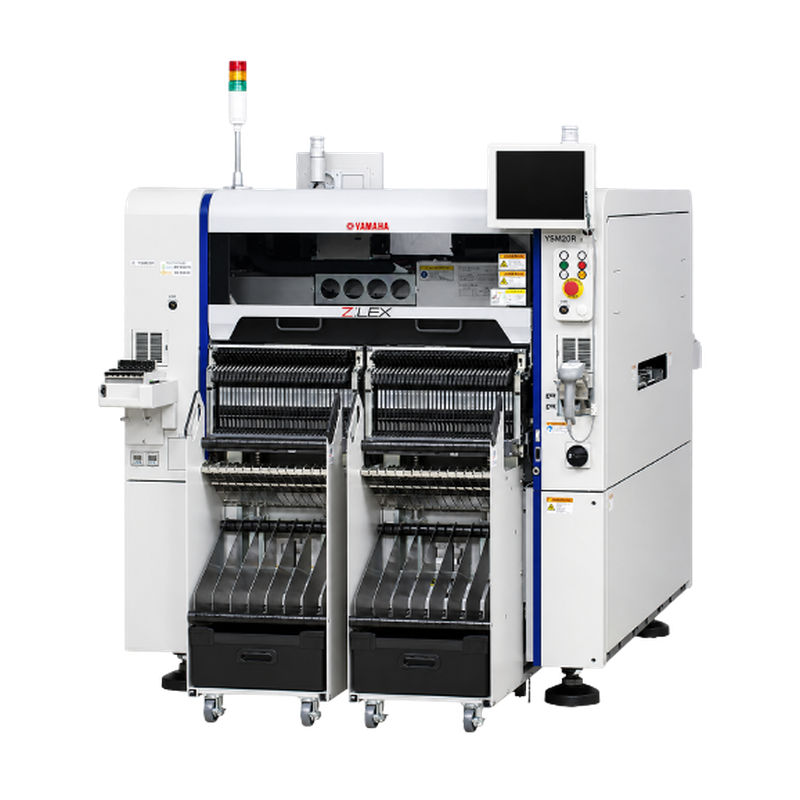

The YAMAHA YSM20R is a high-efficiency SMT pick and place machine for flexible, high-mix PCB assembly. This 2023 refurbished unit is positioned for overseas EMS and OEM electronics manufacturers that need configuration review, testing support, export packing and global delivery assistance from LCSMT.
Machine photos for buyer verification.
Add actual front, side, nameplate, feeder, testing and packing photos. For a high-value refurbished SMT machine, real images help overseas buyers confirm model, condition and export readiness.
Upload front.jpg
Upload side.jpg
Upload nameplate.jpg
Upload feeder-bank.jpg
Upload testing.jpg
YAMAHA YSM20R key information.
Specifications below follow YAMAHA standard information. Actual feeder quantity, nozzle set, software version, voltage and accessories should be confirmed before quotation.
Standard technical data for review.
Use this section to help EMS and OEM buyers quickly understand whether the machine can match their production line, board size and component requirements.
| Technical Item | YAMAHA YSM20R Standard Information |
|---|---|
| Machine Type | High-efficiency modular surface mounter |
| Placement Capability | Up to 95,000 CPH under YAMAHA-defined optimum conditions |
| Mounting Accuracy | ±0.035 mm, with ±0.025 mm under specified optimum conditions |
| PCB Handling | Single lane; dual-stage option depending on configuration |
| Maximum PCB Size | L810 × W490 mm |
| Minimum PCB Size | L50 × W50 mm |
| Component Range | 0201 mm to W55 × L100 mm depending on head and recognition configuration |
| Component Height | Up to 15 mm with HM head; up to 28 mm with FM head |
| Feeder Capacity | Max. 140 types fixed plate / max. 128 types feeder carriage exchange, 8mm feeder conversion |
| Tray Support | Depends on cATS / sATS configuration |
| Power Supply | 3-phase AC 200 / 208 / 220 / 240 / 380 / 400 / 416V ±10%, 50/60Hz |
| Main Unit Dimensions | Approx. L1374 × W1857 × H1445 mm |
| Machine Weight | Approx. 2050 kg, main unit only |
Confirm the unit before quotation.
LCSMT can help review the actual machine configuration according to the customer’s BOM, board size, production target and destination-country requirements.
Configuration to Confirm
- Feeder quantity and feeder type
- Nozzle set and nozzle condition
- HM / FM head configuration
- Tray feeder or auto tray sequencer availability
- Conveyor direction and PCB handling mode
- Software version and machine language
Buyer Requirement Matching
- Camera and vision system condition
- Voltage and factory power compatibility
- Manuals, accessories and spare parts availability
- BOM-based feeder and nozzle matching
- Testing video or sample board test before shipment
- Export packing scope and logistics option
Practical checks for refurbished SMT equipment.
For overseas buyers, condition confirmation is one of the most important parts of used SMT equipment sourcing. LCSMT can support review and testing documentation before shipment.
Inspection Support
- Power-on test
- Machine appearance and cleaning review
- X/Y/Z axis movement check
- Conveyor operation check
- Camera and vision inspection
- Sensor and safety cover check
Before Shipment Confirmation
- Feeder interface and feeder loading check
- Nozzle holder and head condition review
- Software startup and basic operation confirmation
- Testing video before shipment
- Configuration confirmation before final quotation
- Photo confirmation before packing
Prepared for overseas delivery.
Export preparation can include cleaning, fixing, moisture protection, wooden case packing, export documents and logistics coordination.
Export Packing Process
- Machine cleaning before packing
- Moving parts fixing
- Moisture protection
- Vacuum or protective film if required
- Export wooden case packing
- Nameplate and configuration photo confirmation
Delivery Support
- Export documents support
- EXW / FOB / CIF options
- Door-to-door logistics optional
- Sea freight or air freight coordination
- Global delivery support
- Destination-country requirement review
Suitable production scenarios.
The YAMAHA YSM20R can be considered for SMT production lines requiring high-speed placement, flexible changeover and stable production capability.
EMS Factories
For contract manufacturers handling multiple customer products and frequent changeovers.
OEM Electronics
For in-house PCB assembly lines requiring stable YAMAHA SMT placement capacity.
High-Mix SMT
Suitable for flexible production where feeder matching and program support are important.
Capacity Expansion
A practical option for line upgrade, backup capacity or second-hand SMT line projects.
Industrial Control
Applicable for industrial control PCB assembly and mixed component requirements.
Consumer Electronics
Supports mass production and product changeover needs in consumer electronics assembly.
LED Production
Can be considered for LED-related SMT assembly depending on board and component requirements.
Automotive Electronics
Useful for automotive electronics projects where equipment condition confirmation is essential.
Common buyer questions.
These answers are written for overseas EMS and OEM factories sourcing refurbished YAMAHA SMT pick and place machines.
Is this YAMAHA YSM20R new or used?
This is a 2023 refurbished YAMAHA YSM20R SMT pick and place machine. It is not sold as a new machine. The actual condition, configuration and accessories can be confirmed before quotation.
Can I receive a testing video before shipment?
Yes. LCSMT can help provide testing videos according to the available machine condition and customer requirements, including power-on, motion, conveyor and basic operation checks.
Are feeders and nozzles included?
Feeder and nozzle inclusion depends on the actual unit and quotation scope. LCSMT can help confirm feeder quantity, nozzle set and matching options based on your BOM and production requirement.
What is the standard speed of YAMAHA YSM20R?
The YAMAHA YSM20R standard mounting capability is up to 95,000 CPH under YAMAHA-defined optimum conditions. Actual production speed depends on PCB design, components, feeder layout, program and production environment.
What PCB size can YAMAHA YSM20R handle?
According to YAMAHA standard specifications, the YSM20R can support PCB sizes up to L810 × W490 mm depending on conveyor and machine configuration.
How is the machine packed for export?
The machine can be cleaned, fixed, moisture-protected and packed in an export wooden case. LCSMT can also support export documents and international logistics coordination.
How can I get a quotation?
Please share your target model, required configuration, feeder requirement, board size, destination country and budget range. LCSMT will help confirm availability, configuration, testing details and export packing.
Request a quote for YAMAHA YSM20R.
Share your target configuration, feeder requirement, PCB size, destination country and budget range. LCSMT will help confirm availability, configuration, testing details, export packing and global delivery options.
